Bilge Water Separators
Reliable Separation for Harsh Marine Environments
Whether for military, commercial vessels, or offshore installations, our Bilge Water Separators remove oil, solids, and emulsions from bilge water with precision and reliability. Designed for compact spaces and fully automated operation, they deliver consistent performance to help you meet strict international regulations.

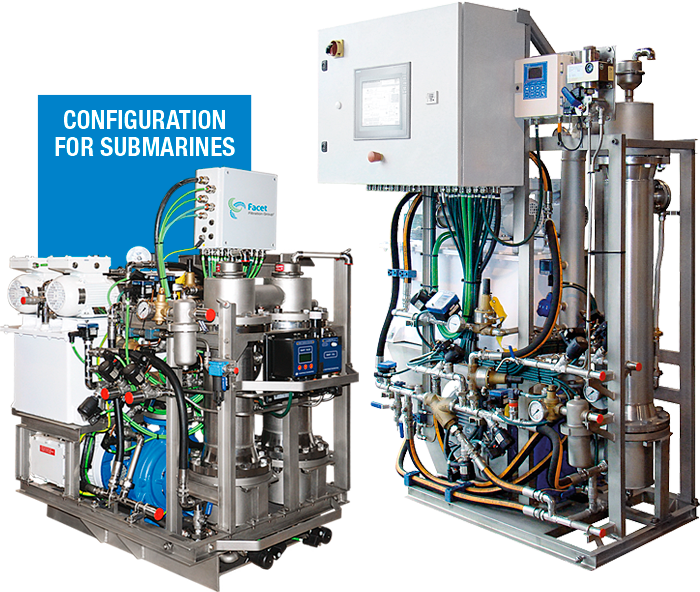

CPS 3.2E + EMB
These compact, space-saving units combine Facet’s traditional MPak® coalescing plates with the latest generation of ceramic membranes, enabling efficient separation of emulsified hydrocarbons from water to produce effluent with less than 5 ppm at a flow rate of 3.2 USGPM.
Tested, approved, and certified to meet IMO MEPC.107(49) requirements.

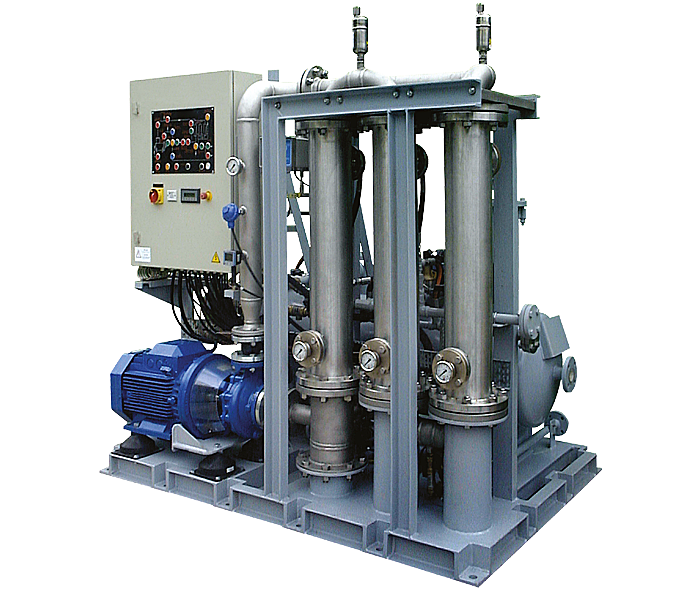

CPS 10B MKIII + EMB
Compact and efficient, these ceramic membrane bilge separators deliver <5 ppm effluent at 11 USGPM (2.5 m³/h).
Fully compliant and certified to IMO MEPC.107(49) standards, these pre-assembled units feature a plug-and-play design—complete with pumps, valves, and control panel—ensuring quick installation and minimal maintenance.

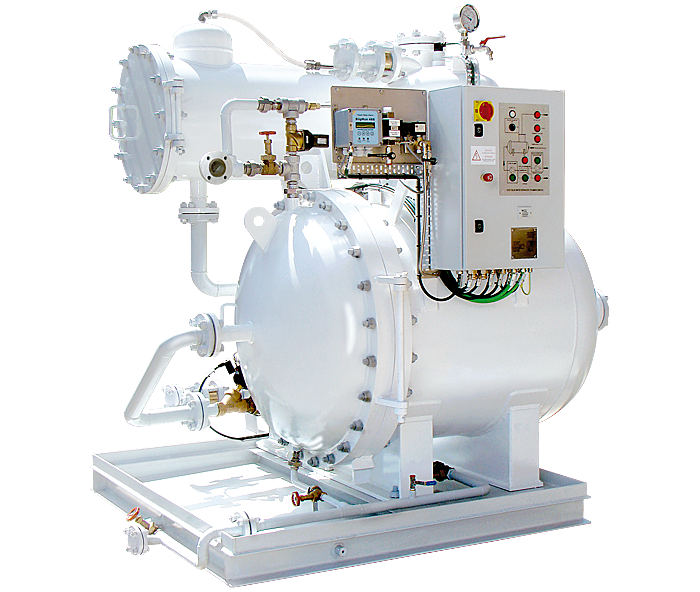

CPS B MKIII + EBM 14x
This space-saving bilge separator combines coalescing plates and ceramic membranes for efficient hydrocarbon removal, achieving under 5 ppm effluent. Automatic PLC-controlled operation with no moving parts (except pumps/valves). Pre-assembled with pumps and controls. Requires only occasional cleaning (no chemicals). Handles 0.5-10 m³/h (2.2-44 USGPM).

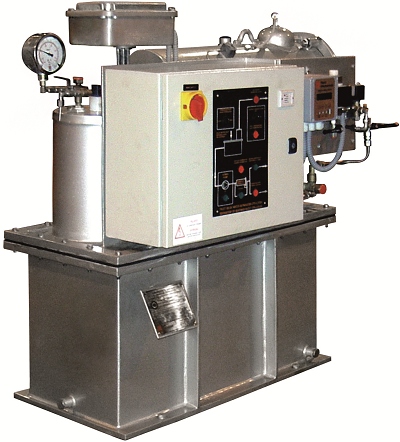

CPS 3.2E + EBM 14×1
Compact, automatic bilge separator combining MPak® coalescing plates and ceramic membranes for two-stage hydrocarbon removal. Achieves effluent under 5 ppm with PLC-controlled operation. No moving parts (except pumps/valves), ready for installation. Minimal maintenance: occasional cleaning (no chemicals). Handles 3.2 USGPM (0.73 m³/h). Separated oil contains <5% water.

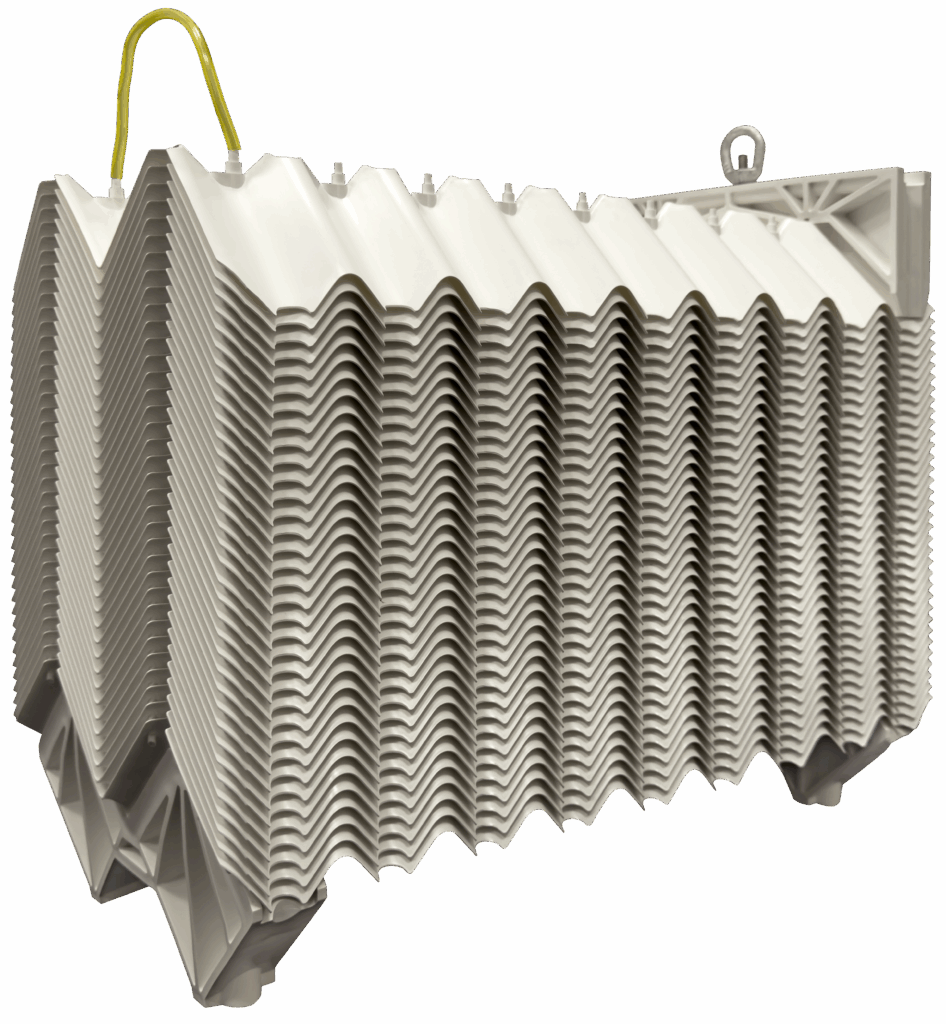

MPak® Coalescing Plates
Superior Oil-Water Separation for Demanding Environments
MPak® coalescing plates efficiently separate oil and solids from water in a wide range of demanding environments. Their modular design adapts seamlessly to new installations or retrofits, providing a low-maintenance, reliable solution with consistent, high-quality effluent.
- Achieves effluent as low as 5 ppm
- Single stage efficiency
- Easy in-place cleaning
- Low maintenance costs
- Customizable plate assemblies for first-fit and retrofit applications
