Aviation Filter Cartridges

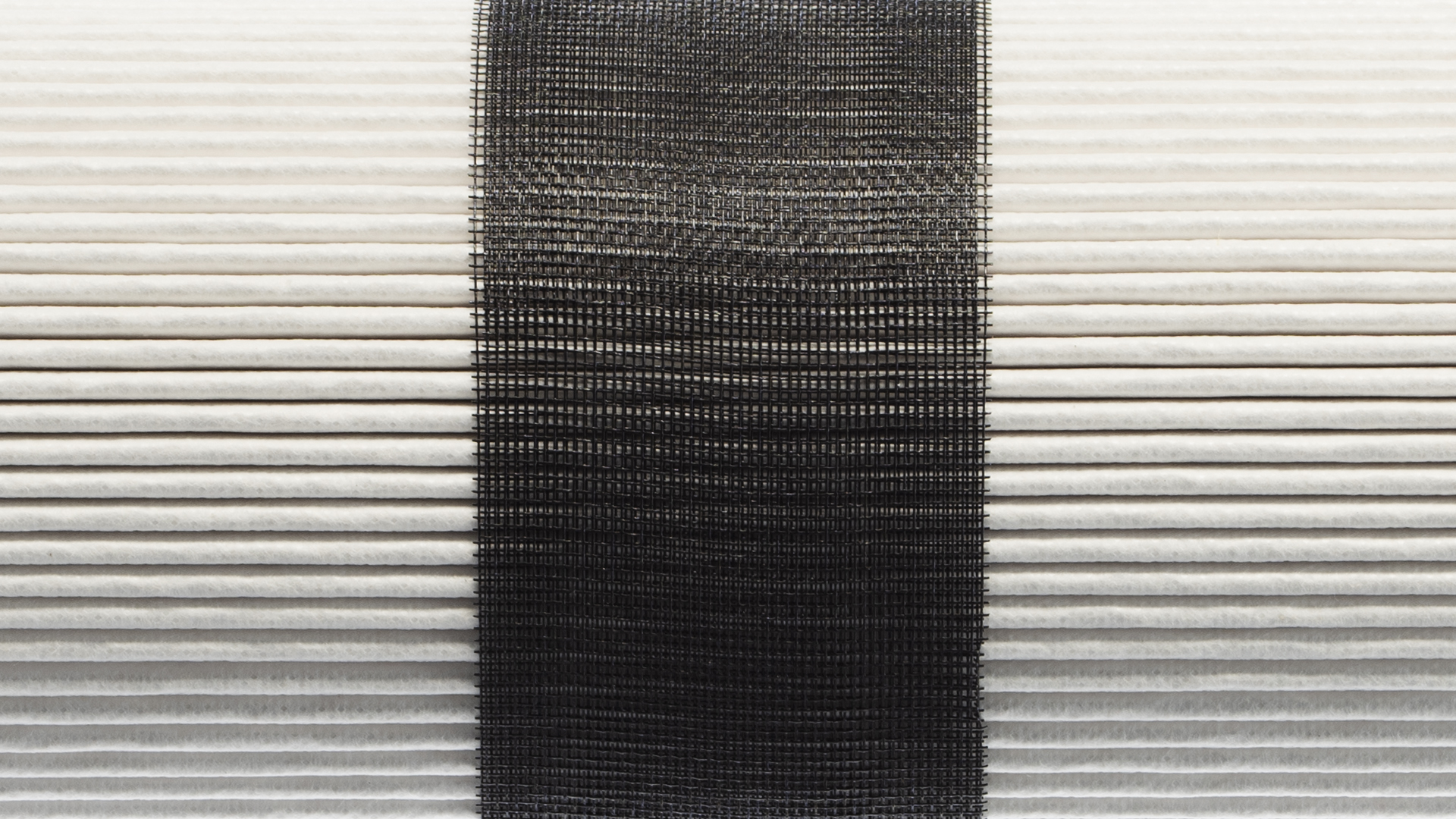

With decades of experience and industry-leading technology, we understand the aviation fuel industry. Our engineers develop aviation fuel filtration solutions that ensure high quality standards while meeting all safety and environmental regulations to make sure jet fuel is contaminant free, clean and dry.

Our filter cartridges can be customized depending on the specific need. We focus on solutions.

Water Containment

Development of SAP Monitor Replacement Technology

Designed with the aviation industry in mind, Facet’s Water Containment solution is an innovative media technology designed to stop water from flowing downstream of the filter and on-board aircraft. Click the button below to learn more about Facet’s development of this technology.

Have a question regarding SAP Monitor replacement technology refer to our FAQ page.

Aviation Solids Removal

Fuel-Gard® VF-21/22SB Series – Filter Cartridges

Carbon steel structural components
Maximum differential pressure: 75 psi (5.25 kg/cm²)
Retention ratings available in 2, 5, 10 & 25 microns
Designed to fit Facet Fuel-Gard 21 & 22 housings

VF-21/22SB Series – Microfilters Data Sheet

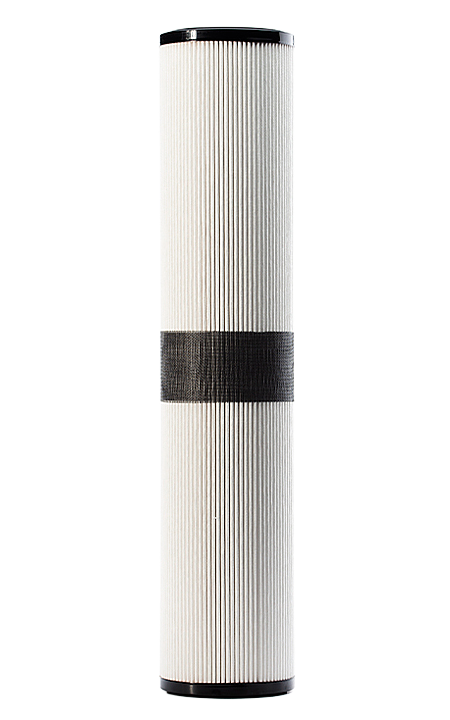

FA Series – Microfilter Cartridges

EI 1590 qualified
Retention ratings available in 1, 2, 3 & 5 microns and as CIF versioon
Designed to fit Facet M housings and MS SuperFlex housings

FA Series Data Sheet

M Series – High Efficiency Pleated Paper Filter Cartridges

High efficiency pleated paper filter cartridges
Micron ratings from 0.5 to 75
6” (152.4mm) outside diameter, one piece cartridges available in four nominal lengths
No special kits needed to install
Designed to fit Facet M housings and MS SuperFlex housings

M Series Data Sheet

CIF Series – Crushable Incinerable Cartridges

High efficiency pleated paper filter cartridges
Micron ratings from 0.5 to 75
6” (152.4mm) outside diameter, one piece cartridges available in four nominal lengths
Designed to fit Facet M housings and MS SuperFlex housings

CIF Series Data Sheet

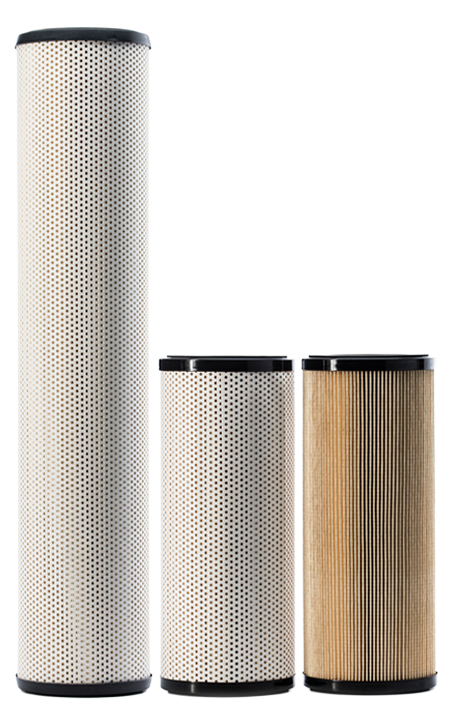

M & CIF Series – High Efficiency Dual Media Pleated Paper Cartridges

Recommended maximum operating temperature: 240°F
Maximum differential pressure: 75 psi
Flow direction: Outside to in
pH range from 5 to 9
Single-piece construction
“Rod Mount” or “Screw base” options available

M & CIF Series Data Sheet

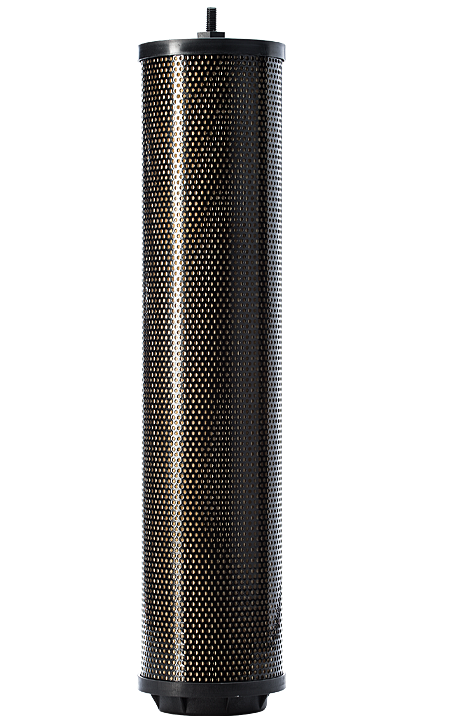

MPI Series – Inside-to-Out Flushing Pleated Paper Filter Cartridges

Flushing filter cartridge
High efficiency pleated paper
Micron ratings 0.5, 1, 2, 5
6” (152.4mm) outside diameter, various nominal lengths
No special kits needed to install
Designed to fit Facet HCS & VCS housings

MPI Series Data Sheet

Aviation Coalescer

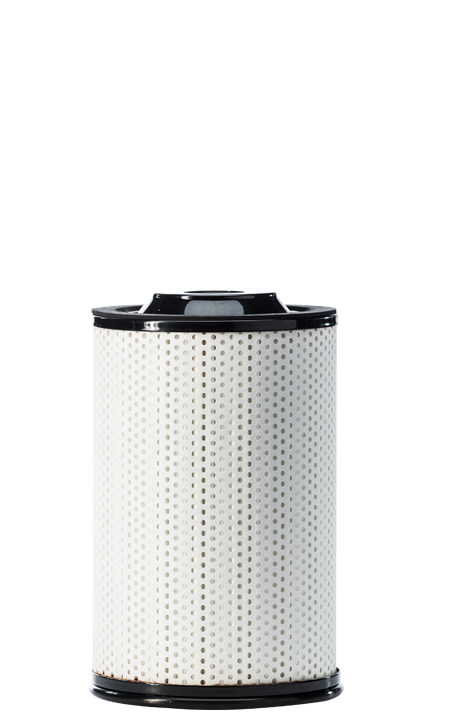

Fuel-Gard® VF 21/22SB Series – FWS – Coalescers

Carbon steel structural components
Designed to fit Facet Fuel-Gard 21 & 22 housings

VF 21/22SB Series – Filter Water Separators Data Sheet

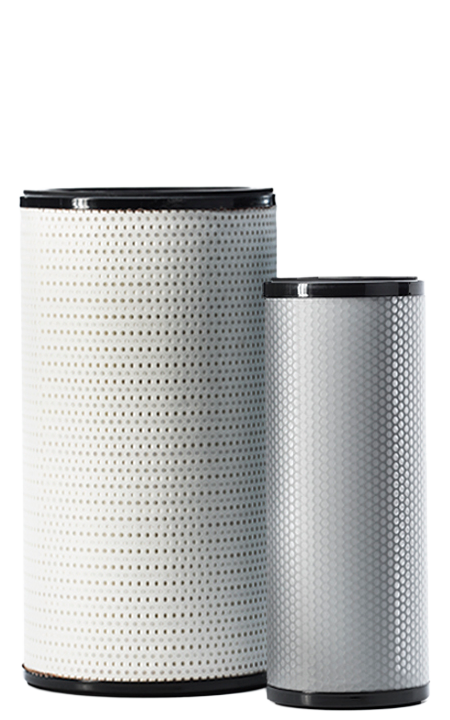

Vertical SuperFlex™ Coalescer Cartridges

Provides two-stage coalescing and separation
Recommended maximum operating temperature: 240 ºF (115 ºC)
Maximum differential pressure: 75 psi (5.17 bar)
pH range from 5 to 9
Flow direction: Outside to in
All metal components coated to protect against corrosion
Standard gaskets are Buna-N—other materials available on request

SuperFlex™ Coalescer Separator Data Sheet

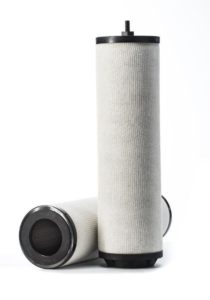

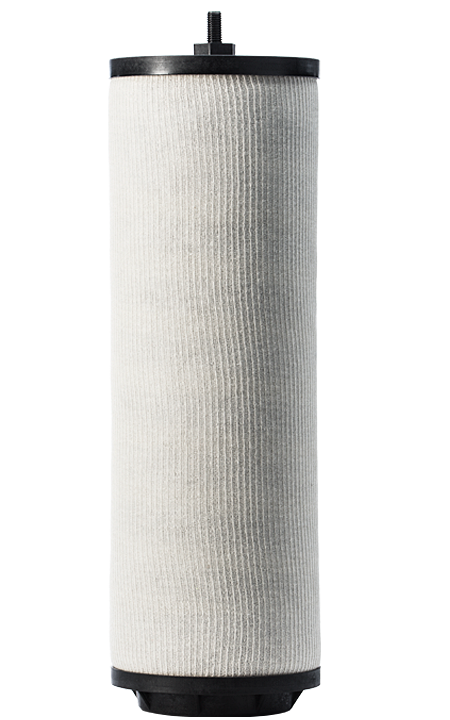

CM Series

Qualified to the 6th Edition of EI 1581 for all category “M”
Multi-layered media for increased solids holding capacity
Ultra-fine solids removal
Maximum water coalescence
Balanced cartridge flow characteristics

CM Series Data Sheet

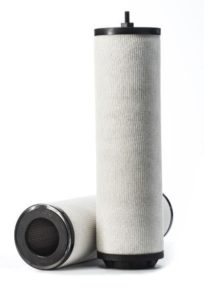

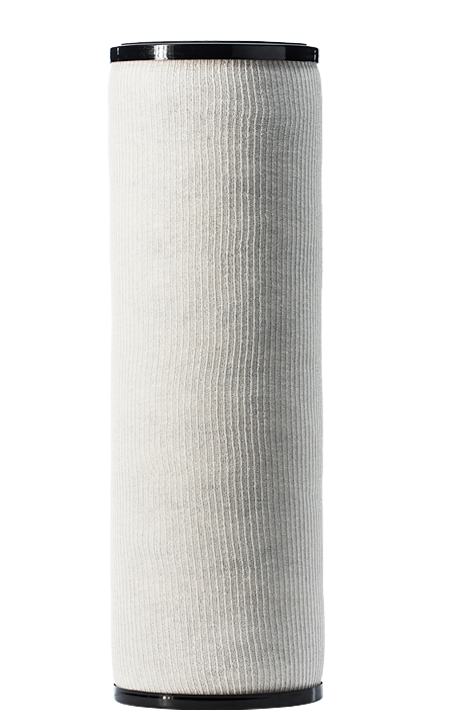

CAA 5 Series

Qualified to the 6th Edition of EI 1581, Category C
Multi-layered media for increased solids holding capacity
Ultra-fine solids removal
Maximum water coalescence
Balanced cartridge flow characteristics

CAA Series 5 Data Sheet

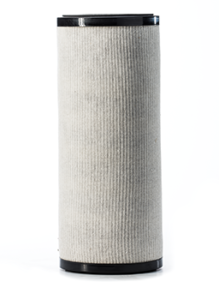

CM 100 Series

ualified to the 6th Edition of EI 1581 for all category “M100”
Multi-layered media for increased solids holding capacity
Ultra-fine solids removal
Maximum water coalescence
Balanced cartridge flow characteristics

CM 100 Series Data Sheet

Aviation Separator

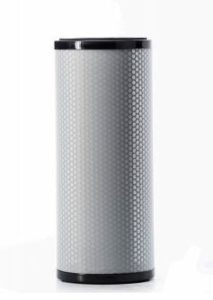

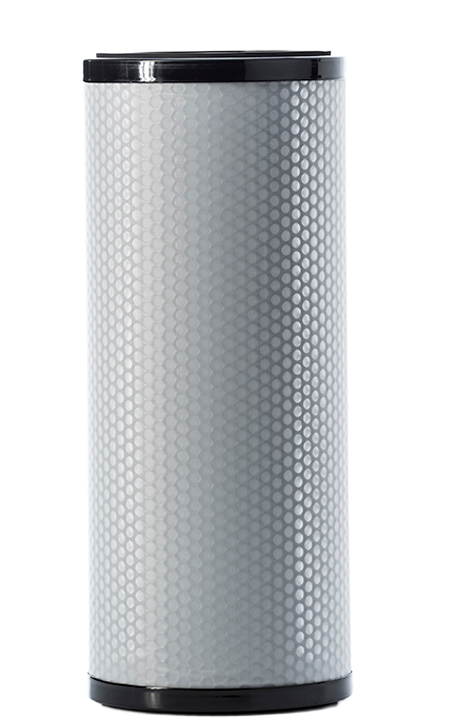

SM Series

Qualified to EI 1581, 6th Edition, Category M
Cleanable and reusable
Superior water barrier
Designed for balanced flow through cartridge

SM Series Data Sheet

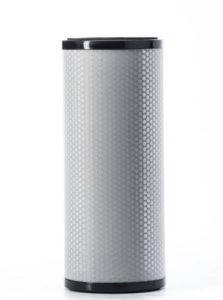

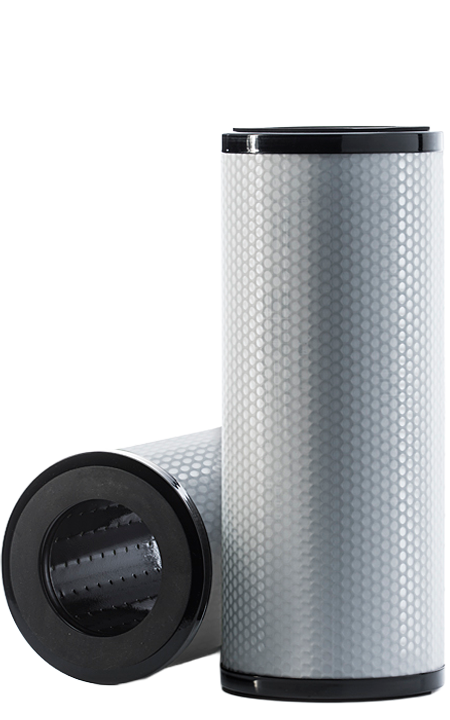

SM 100 Series

Qualified to EI 1581, 6th Edition, Category M100
Cleanable and reusable
Superior water barrier
Designed for balanced flow through cartridge

SM 100 Series Data Sheet

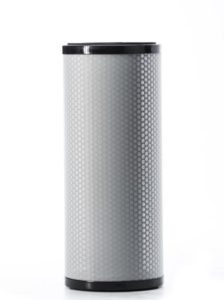

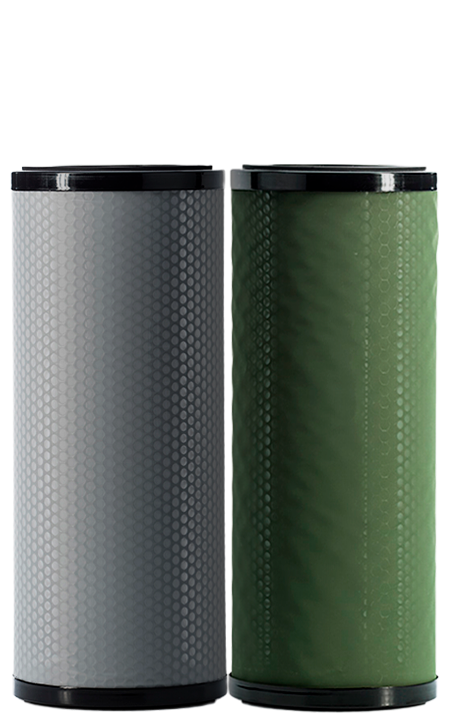

SS Series

Synthetic separator cartridges feature a specially developed treated hydrophobic media
Qualified to EI-1581
Cleanable and reusable
Superior water barrier
pH range from 5 to 9
Designed for balanced fl ow through cartridge
Maximum recommended operation temperature is 240 ºF (115 ºC)

SS Series Data Sheet

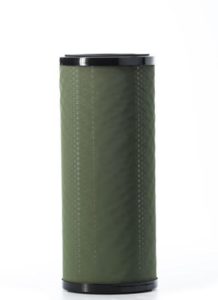

ST Series

Qualified to EI 1581 6th Edition, Category C
Cleanable and reusable
Synthetic mesh 50 micron
Designed for balanced flow through cartridge
Treated metal components for corrosion protection

ST Series Data Sheet

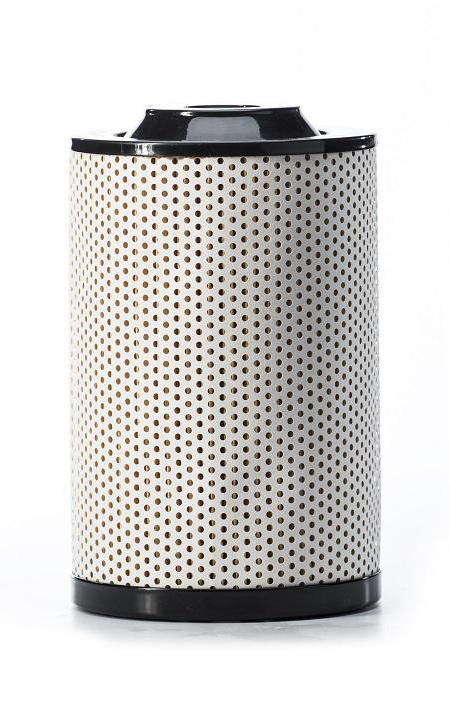

Fuel-Gard® VF 21/22SB Series – Separators

Carbon steel structural components
Designed to fit Facet Fuel-Gard 21 & 22 housings

VF 21/22SB Series – Filter Water Separators Data Sheet

Vertical SuperFlex™ – Separator Cartridges

Provides two-stage coalescing and separation
Recommended maximum operating temperature: 240 ºF (115 ºC)
Maximum differential pressure: 75 psi (5.17 bar)
pH range from 5 to 9
Flow direction: Outside to in
All metal components coated to protect against corrosion
Standard gaskets are Buna-N—other materials available on request

SuperFlex™ Coalescer Separator Data Sheet

Aviation Monitor

FG Series 2″

Tested and qualified to meet the 7th edition of EI 1583 Specification
Multi-layered media for increased solids holding, water removal and shutdown protection
New conductive end caps with anti-static properties which greatly reduce the possibility of static discharge during the fueling process
Structurally withstands a minimum of 174 psi (12 bar)

FG Series 2″ Data Sheet

FG Series 6″

Qualified to 7th Edition of EI 1583
Multi-layered media for increased solids holding, water removal and shutdown protection
Structurally withstands a minimum of 175 psi (12 bar)
Not adversely affected by exposure to temperatures varying from -40ºF (-40ºC) to 160ºF (71ºC)
Works in the presence of surfactants and fuel additives but not recommended for use in fuel containing anti-icing additive
Designed to fit Facet HFGI, HFGO & FGH 6″ monitor housings and VFGM SuperFlex™ housings

FG Series 6″ Data Sheet

Fuel-Gard® VF-21/22SB – Monitor

Carbon steel body
Aluminum head
Epoxy coated internally and externally
150 psi (10.5 kg/cm2) design pressure
Swing bolt quick open closure
Buna-N o-ring closure gasket
Vent and drain connections w/brass petcocks provided
1-1/2” NPT inlet and outlet connections

Fuel-Gard® VF-21/22SB – Monitor Data Sheet

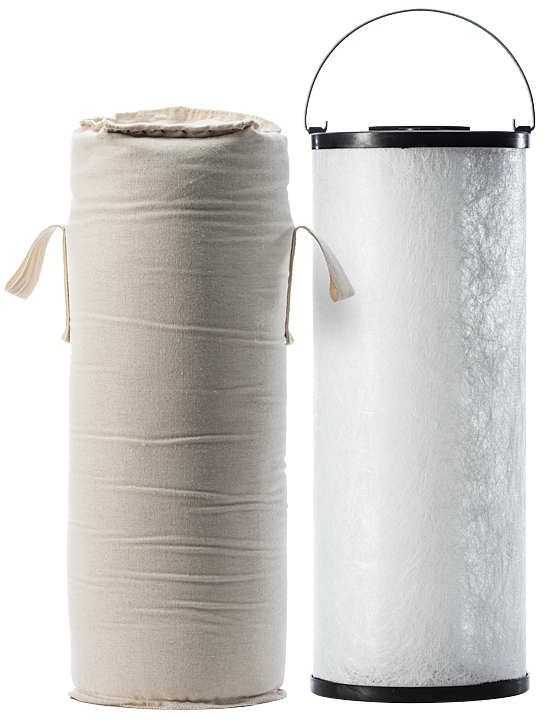

Clay Cartridges
