Marine Filter Cartridges

The marine industry experiences unique demands due to the range of contaminants that result from the salt and seaborne elements. We partner with our customers to understand each challenge and provide solutions that meet each need, whether is onshore, offshore or onboard.

Solids Removal

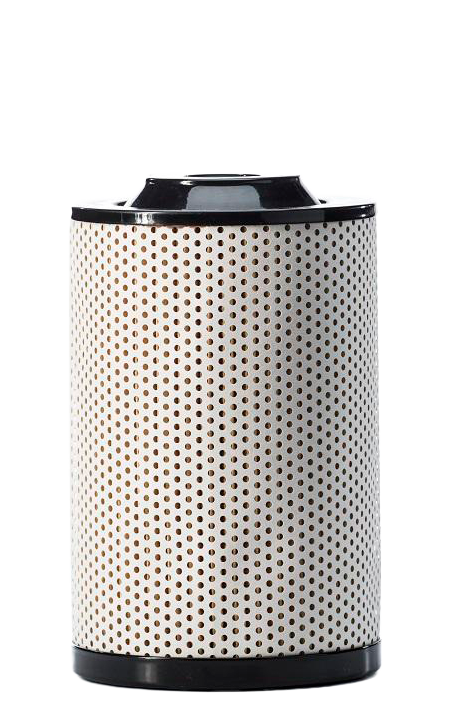

Fuel-Gard® VF-21/22SB Series – Filter Cartridges

  • CF 6Carbon steel structural components
  • Maximum differential pressure: 75 psi (5.25 kg/cm²)
  • Retention ratings available in 2, 10 & 25 microns

VF-21/22SB Series Data Sheet

DOWNLOAD

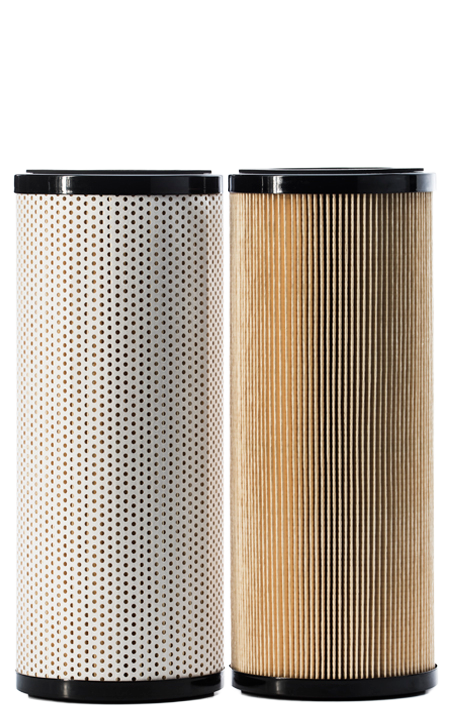

M Series

  • Aviation M SeriesHigh efficiency pleated paper filter cartridges
  • Micron ratings from 0.5 to 75
  • 6” (152.4mm) outside diameter, one piece cartridges available in four nominal lengths
  • No special kits needed to install

M Series Data Sheet

DOWNLOAD

MG Series

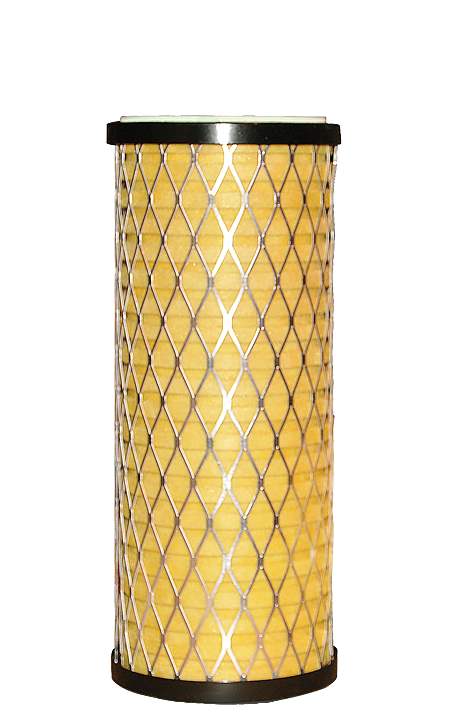

  • model mgFacet’s Model MG glass fiber depth filter cartridges are for removing colloidal, slimy or sludge type solids 10 micron and larger or where compatibility problems exist with cellulose media. The cartridges are 6” (152 mm) OD, 3 ½” (89 mm) ID and 14 ½” (368 mm) long.
  • Glass fiber depth filter cartridges
  • Micron rating 10
  • 6” (152.4mm) outside diameter, one piece cartridges available in three nominal lengths

MG Series Data Sheet

DOWNLOAD

Coalescer Cartridges

Fuel-Gard® VF-21/22SB Series – Coalescer Cartridges

  • VF Housing CC-21_CC-22Recommended maximum operating temperature: 180°F (82°C)
  • Maximum differential pressure: 75 psi (5.25 kg/cm²)
  • pH range from 5 to 9

VF-21/22SB Series Data Sheet

DOWNLOAD

CA Series

  • High efficiency pleated paper filter cartridges
  • Micron ratings from 0.5 to 75
  • 6” (152.4mm) outside diameter, one piece cartridges available in four nominal lengths
  • No special kits needed to install

CA Series Data Sheet

DOWNLOAD

CAA Series 5

  • Qualified to the Sixth Edition of EI 1581, Category C
  • Multi-layered media for increased solids holding capacity
  • Ultra-fine solids removal
  • Maximum water coalescence
  • Balanced cartridge flow characteristics
  • Recommended maximum operating temperature: 240ºF (115ºC)
  • Withstand in excess of 75 psi differential pressure
  • pH range from 5 to 9
  • Screw base or open-end configuration

CAA Series 5

DOWNLOAD

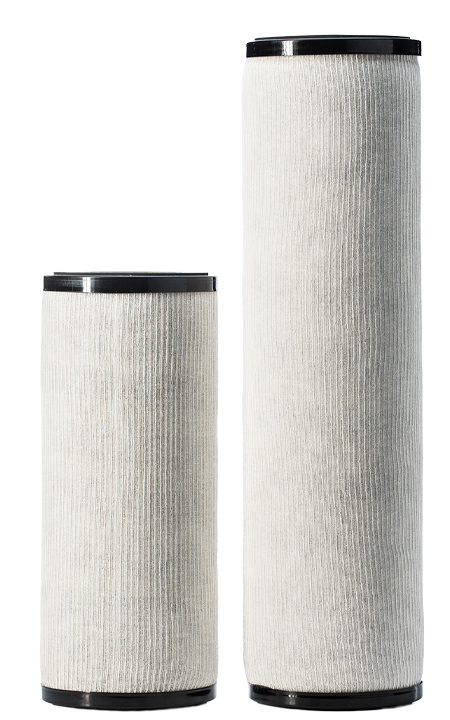

CB, CC & CR Series

  • Multi-layered media for increased solids holding capacity
  • Solids removal: 5 micron
  • Water removal down to 10 ppm

CB, CC & CR Series Data Sheet

DOWNLOAD

CM Series 5

  • Qualified to the Sixth Edition of EI 1581 for all category M
  • Multi-layered media for increased solids holding capacity
  • Ultra-fine solids removal
  • Maximum water coalescence
  • Balanced cartridge flow characteristics
  • Recommended maximum perating temperature: 240ºF (115ºC)
  • Withstands excess of 75 psi differential pressure
  • pH range from 5 to 9
  • Choice of self-centering rod or screw base coalescer cartridge mounting styles

CM Series 5 Data Sheet

DOWNLOAD

CM100 Series

  • Qualified to the Sixth Edition of EI 1581 for all category M
  • Multi-layered media for increased solids holding capacity
  • Ultra-fine solids removal
  • Maximum water coalescence
  • Balanced cartridge flow characteristics
  • Recommended maximum operating temperature: 240ºF (115ºC)
  • Withstands excess of 75 psi differential pressure
  • pH range from 5 to 9
  • Choice of self-centering rod or screw base coalescer cartridge mounting styles

CM100 Series Data Sheet

DOWNLOAD

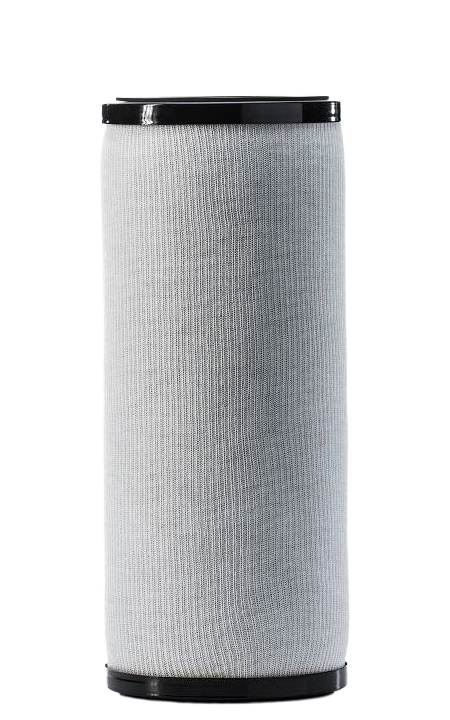

EB Series

  • EB SeriesSolids removal: 15 micron nominal
  • Removes oil down to 5 ppm
  • Self-centering rod mount

EB Series Data Sheet

DOWNLOAD

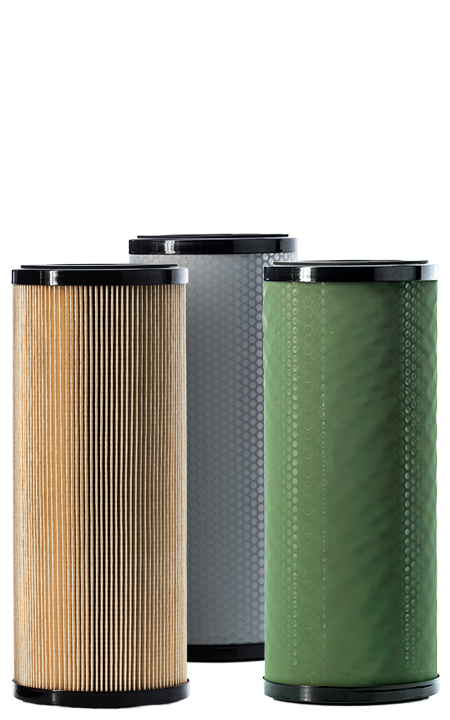

Separator Cartridges

Fuel-Gard® VF-21/22SB Series – Separator Cartridges

CF 6

  • Carbon steel structural components
  • Maximum differential pressure: 75 psi (5.25 kg/cm²)

VF-21/22SB Series Data Sheet

DOWNLOAD

SS Series

  • SS SeriesSuperior water repelling characteristics over Teflon® and paper
  • More resistant to surfactants
  • Cleanable and reusable
  • Maximum recommended operating temperature: 240°F (115°C)
  • pH range from 5 to 9
  • Designed for balanced flow through cartridge
  • Flow direction: outside to in

SS Series Data Sheet

DOWNLOAD

SS Series 5

  • SS SeriesSuperior water repelling characteristics over Teflon® and paper
  • More resistant to surfactants
  • Cleanable and reusable
  • Maximum recommended operating temperature: 240°F (115°C)
  • pH range from 5 to 9
  • Designed for balanced flow through cartridge
  • Flow direction: outside to in

SS Series Data Sheet

DOWNLOAD

SS Series 5

  • SS SeriesQualified to EI 1581 6th Edition, Category C
  • Superior water repelling characteristics over Teflon® and paper
  • More resistant to surfactants
  • Cleanable and reusable
  • Maximum recommended operating temperature: 240°F (115°C)
  • pH range from 5 to 9
  • Designed for balanced flow through cartridge
  • Flow direction: outside to in

SS Series 5 Data Sheet

DOWNLOAD

ST Series

  • ST SeriesCleanable and reusable
  • Synthetic mesh 75 micron
  • Designed for balanced flow through cartridge
  • Treated metal components for corrosion protectionModel SS
  • Superior water repelling characteristics over Teflon® and paper
  • More resistant to surfactants
  • Cleanable and reusable
  • Maximum recommended operating temperature: 240°F (115°C)
  • pH range from 5 to 9
  • Designed for balanced flow through cartridge
  • Flow direction: outside to in

ST Series Data Sheet

DOWNLOAD

ST Series 5

  • ST SeriesQualified to EI 1581 6th Edition, Category C
  • Cleanable and reusable
  • Synthetic mesh 75 micron
  • Designed for balanced flow through cartridge
  • Treated metal components for corrosion protectionModel SS
  • Superior water repelling characteristics over Teflon® and paper
  • More resistant to surfactants
  • Cleanable and reusable
  • Maximum recommended operating temperature: 240°F (115°C)
  • pH range from 5 to 9
  • Designed for balanced flow through cartridge
  • Flow direction: outside to in

ST Series 5 Data Sheet

DOWNLOAD
