The Future of Aviation Fuel Filtration:
FA-CIF Series Microfilters
EI 1590 Qualified. Same Performance, Better Planet.
Efficiency Meets Sustainability:
The FA-CIF Advantage
FA-CIF Series Microfilters are engineered for sustainable operations. Their metal-free, coreless design delivers EI 1590-qualified performance with dramatically lower operational costs and environmental impact.
Up to 45% lighter than standard microfilters, reducing transportation costs

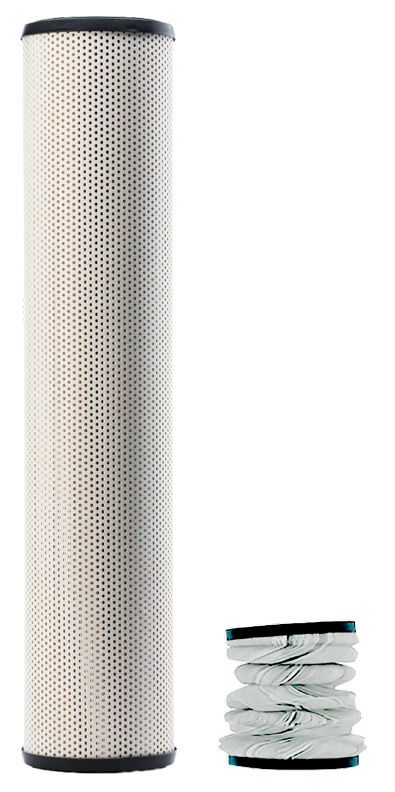

Metal-free and fully incinerable, crushing to 20% of original size for easier disposal
Faster, easier, and safer to install, saving up to 4 hours per changeout
Up to 80% less waste volume, reducing both disposal costs and environmental footprint
How it works

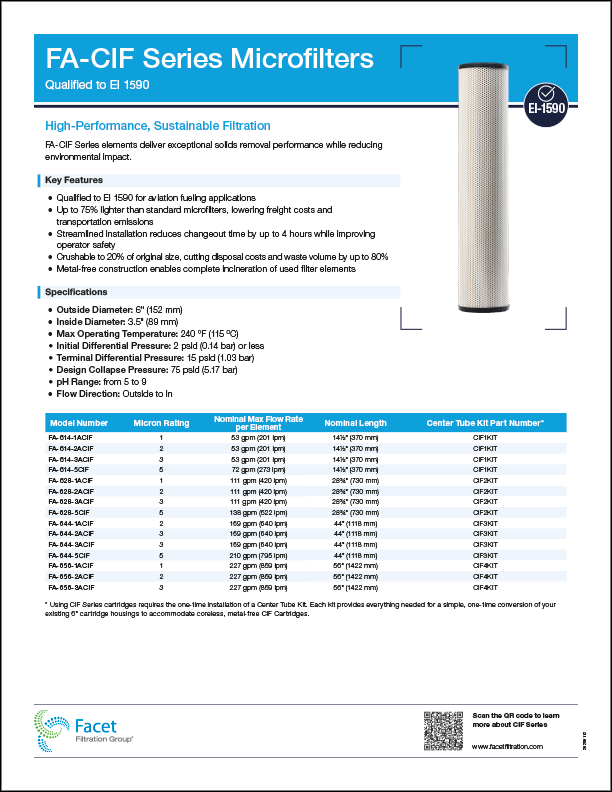

Specifications
- Qualified to EI 1590
- Micron Ratings: 1, 2, 3, and 5 µm
- Nominal Lengths: 14½”, 38¾, 44″ & 56″ (370 mm, 730 mm, 1118 mm & 1422 mm)
- Outside Diameter: 6″ (152 mm)
- Inside Diameter: 3.5″ (89 mm)
- Max Operating Temperature: 240 °F (115 ºC)
- Initial Differential Pressure: 2 psid (0.14 bar) or less
- Terminal Differential Pressure: 15 psid (1.03 bar)
- Design Collapse Pressure: 75 psid (5.17 bar)
- pH Range: from 5 to 9
- Flow Direction: Outside to In
- Compatible with Facet M Series and standard housings
End-to-End Sustainability & Efficiency
From transport to disposal, FA-CIF filters deliver value at every stage.
Lighter Logistics & Lower Emissions
Up to 45% lighter than standard microfilters
Reduced shipping costs, fewer truckloads, lower carbon footprint
Faster, Easier, Safer Installation
Save up to 4 hours per changeout
Less downtime, reduced physical strain on teams, simplified retrofit with CIF Center Tube Kit
Sustainable Disposal & Reduced Costs
Up to 80% less waste volume
Metal-free, fully incinerable, crushable to 20% of original size
Same Performance.
Better Planet.
EI 1590-Qualified in 1, 2, 3, and 5 µm
Proven filtration performance, full aviation compliance

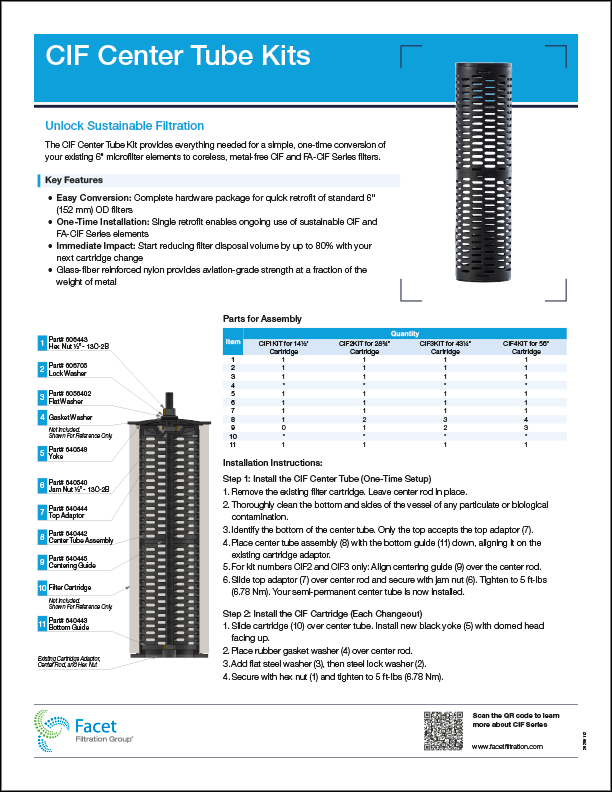

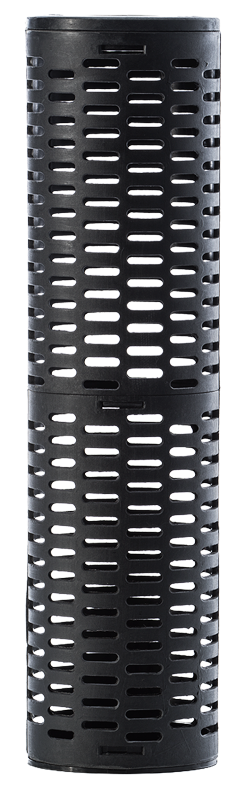

Unlock Sustainable Filtration with the CIF Center Tube Kit
With the CIF Center Tube Kit, retrofitting is simple. The kit provides everything needed for a simple one-time conversion of existing microfilter elements to FA-CIF elements. It’s designed for seamless integration with your existing infrastructure—no major modifications, no extended downtime, no complicated conversions.
- Universal Compatibility: Designed to fit a wide range of housing lengths
- One-Time Setup: Simply install the semi-permanent center tube to enable ongoing use of sustainable, coreless elements
- No Major Modifications: Upgrade your facility without extended downtime or complex engineering changes
Why Facet?
Facet is committed to delivering high-performance filtration solutions that meet the unique needs of your industry. Our FA-CIF Series filters reflect our dedication to sustainability, innovation, and customer satisfaction.
Contact our team for expert support to meet your filtration needs.
Get Expert Guidance
Ready to Transform Your Operation?
Our engineering team is ready to help you calculate the logistics and disposal savings for your specific site.
